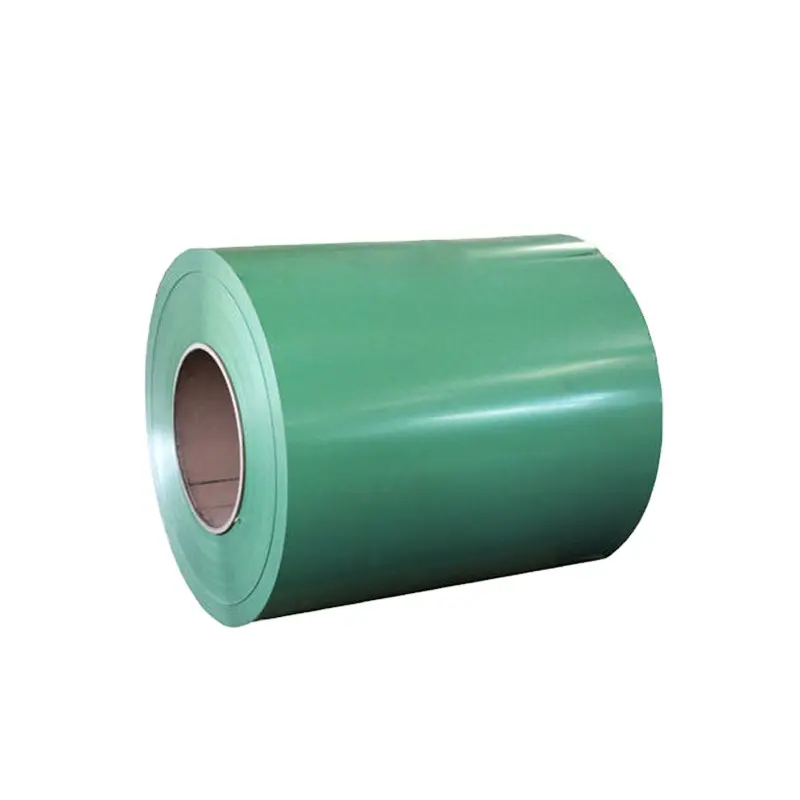

Prepainted Galvanized Steel Coil G550

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Thickness 0.2-1.5mm

Width 600-1500mm

Coating Mass 40-275g/m2

Surface Treatment Top 15-40μm, Back 5-20μm

Certificate ISO 9001

Get Latest Price

Detail

Pre-Painted Galvanized Steel Coil (PPGI) and Pre-Painted Galvalume Steel Coil (PPGL) is a kind of building materials, with galvanized sheet and aluzinc sheet as the substrate, after pretreatment (degrease and chemical treatment) and liquid dope with several layers of color, then firing and cooling, finally the palte steel is called pre-painted galvanized steel coil (PPGI) or pre-painted galvalume.

PPGI/PPGL Perpainted Galvanized/Galvalume Steel
Brand:	Rogosteel	Place of Origin:	Shandong, China
Thickness:	0.2-1.5mm	Width:	600-1500mm
Zinc Coating:	40-275g/m2	Painting:	Top 15-40μm, Back 5-20μm
Standard:	ASTM A653/GB/JIS	Grade:	SGCC/CGCC/DX51D+Z
Color:	All Ral Color or As Request	Technique:	Cold Rolled
Coil Weight:	3-8 Tons	Type:	Coil, Sheet, Strips, Plate
Certificates:	ISO9001-2008,SGS,BV	Supply Ability:	2000000 tons per year
MOQ:	25 tons per size	Delivery Time:	15-20 work days
Packaging:	Standard Sea-worthy Packing	Payment term:	T/T , L/C at sight

2022321

As the layer bears different colors, it is also known as color coated steel sheet. Through the combined use of diverse paints and base substrates, we select colors and material properties that meet the specific needs.

Painting information as following:

Top Paint: PVDF, HDP, SMP, PE(Polyester), PU.

Prepainted Galvanized Steel Coil has many functions like decorative (color ) machinability, weather resistance, scratch resistance, stain resistance, chemical resistance and adhesion resistance.

Primer Paint: Polyurethane, epoxy, PE.

The functions of this layer including machinability, corrosion resistance, adhesion and scratch resistance.

Back Paint: Epoxy, modified polyester.
